HN-PLED200W/BIColor
Product model
2 in 1 color temperature LED studio panel light
ype List Type Specification HN-PLED150W/BICOLOR 150W ,LED PENEL LIGHTS , BICOLORColor temperature HN-PLED200W/BICOLOR 200W ,LED SPOT LIGHTS , BICOLORColor temperature HN-PLED300W/BICOLOR 300W ,LED SPOT LIGHTS ,BICOLORColor temperature produc
2 in 1 color temperature LED studio panel light
ype List
| Type | Specification |
| HN-PLED150W/BICOLOR | 150W ,LED PENEL LIGHTS , BICOLOR Color temperature |
| HN-PLED200W/BICOLOR | 200W ,LED SPOT LIGHTS , BICOLOR Color temperature |
| HN-PLED300W/BICOLOR | 300W ,LED SPOT LIGHTS ,BICOLOR Color temperature |

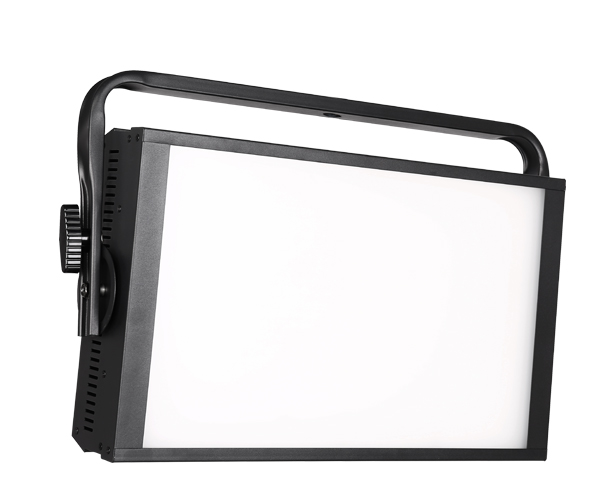

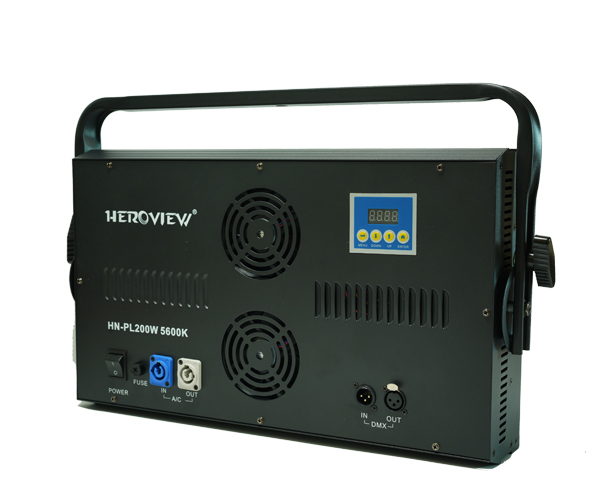

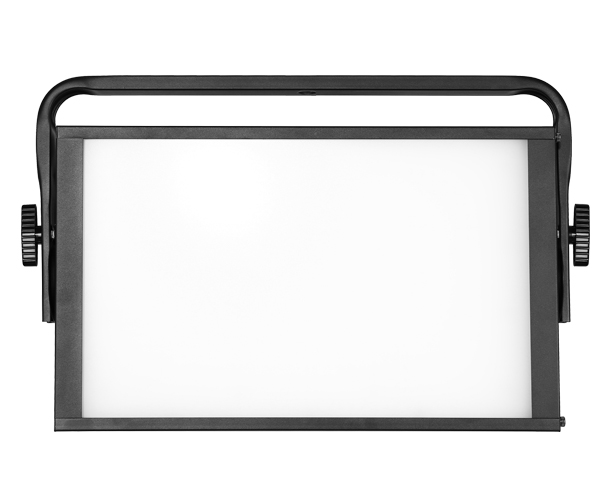

product picture
Technology data:
Voltage: AC100-240V/50-60Hz
Power: 300W，200W，150W
LEDs: 1920pcs LEDs, single power 0.5W, model2835. warm white. Warm white 3200k 960pcs, cool white 5600k 960pcs .
LEDs power: 270W，180W，135W
LEDs life: 50000-100000 hours
Color Temp.: 3200-5600K tunable, ±100
CRI: ≥95，TLCI≥93
Beam angle: 105°(the angle in 50% lux of centre)
Light-emitting surface : 420X260mm
Luminous flux:300W（5600K/ 25610 lm、3200K/ 22940 lm）, 200W（5600K /19220 lm、3200K /17145 lm），
150W（5600K/ 14915 lm、3200K /12530 lm）
Control signal : DMX
DMX channel: 2 channels
Control model: DMX or manual button
Dimming: 16BIT above smooth flicker-free dimming, dimming not delay, frequency 20k above.
Radiation fan ：custom made fan . its speed and noisy changeable intelligently.
DD-SP3256 C（150W）without fan .

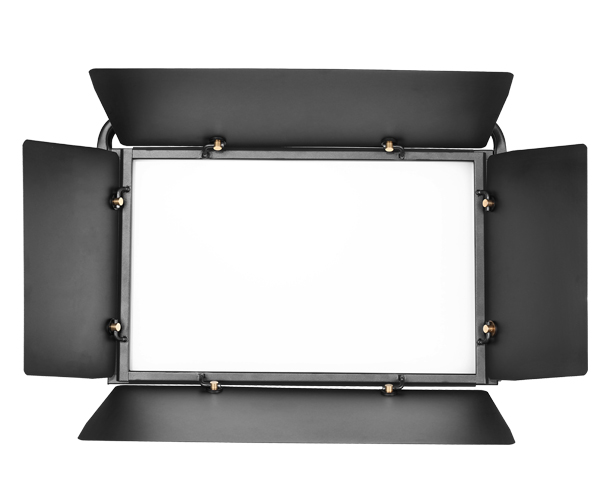

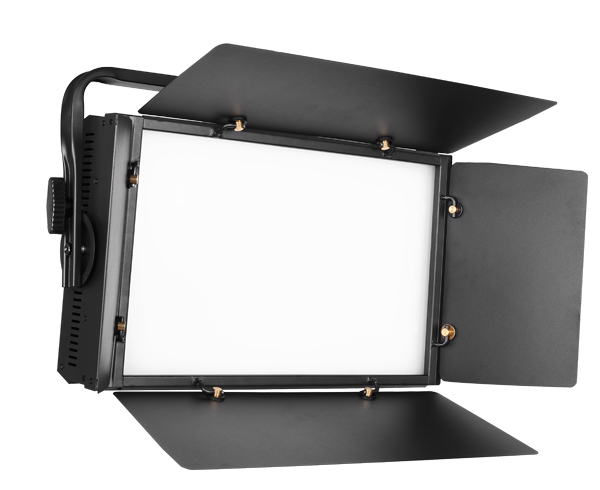

Barndoor and front lens: barndoor moveable , front lens changeable
Ambient temperature：-25℃-40℃
IP rating：IP20
Inner size：with barndoor 56X14.6X36cm，without barndoor 56X11X34.5cm
Packing size：62X23X41cm
Net weight： 9.2Kg，(light 7.5kg, barndoor 1.7Kg)
Gross weight：10.5Kg
Beam size and LUX data at different distance
| （ | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
|
300W | 5600K centre（LUX） | 8986 | 2403 | 1179 | 712 | 508 | 373 | 269 | 235 | 197 | 163 |
| 5600K average（LUX） | 3232 | 864 | 424 | 256 | 183 | 134 | 97 | 85 | 71 | 59 | |
| 3200K centre（LUX） | 8259 | 2218 | 1086 | 655 | 468 | 343 | 269 | 213 | 179 | 149 | |
| 3200K average（LUX） | 2971 | 798 | 391 | 236 | 168 | 123 | 97 | 77 | 64 | 54 | |
|
200W | 5600K centre（LUX） | 6875 | 1836 | 897 | 543 | 386 | 283 | 221 | 177 | 149 | 124 |
| 5600K average（LUX） | 2473 | 660 | 323 | 195 | 139 | 102 | 79 | 64 | 54 | 45 | |
| 3200K centre（LUX） | 5996 | 1602 | 792 | 478 | 342 | 251 | 198 | 160 | 135 | 112 | |
| 3200K average（LUX） | 2157 | 576 | 285 | 172 | 123 | 90 | 71 | 58 | 49 | 40 | |
|
150W | 5600K centre（LUX） | 5320 | 1569 | 696 | 425 | 302 | 218 | 173 | 139 | 116 | 98 |
| 5600K average（LUX） | 1914 | 564 | 250 | 153 | 109 | 78 | 62 | 50 | 42 | 35 | |
| 3200K centre（LUX） | 4468 | 1192 | 586 | 354 | 253 | 185 | 145 | 116 | 98 | 79 | |
| 3200K average（LUX） | 1607 | 429 | 211 | 127 | 91 | 67 | 52 | 42 | 35 | 28 | |
