HN-P10B(200W/PRIME/NORMAL)
Product model

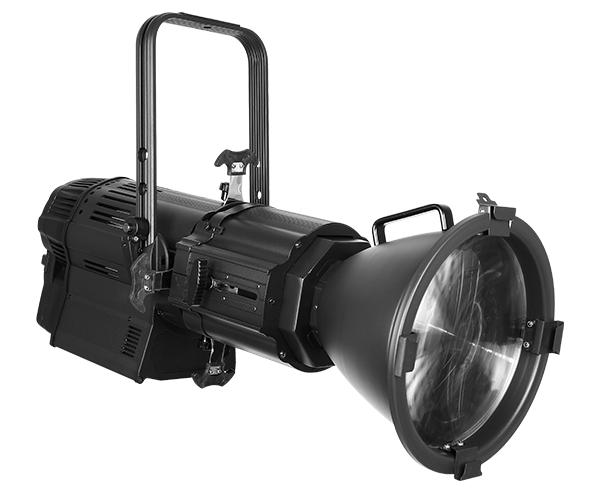

Product name : 200W LED 10° profile light
HN-P10B(200W/PRIME/NORMAL)
Item: P10B56（200W 5600K）P10B32（200W 3200K）
Technology data: Voltage: AC100-240V/50-60Hz Power: 220W LEDs: 56 pcs 3030 or 3535 white LEDs module, single LED 5W LEDs power: 200W LEDs life: 50000-100000 hours Color Temp.: 3200k or 5600k CRI: 93，TLCI91 Luminous flux: 3200K/4940 lm、5
Product name : 200W LED 10° profile light
HN-P10B(200W/PRIME/NORMAL)
Item: P10B56（200W 5600K）P10B32（200W 3200K）
Technology data:
Voltage: AC100-240V/50-60Hz
Power: 220W
LEDs: 56 pcs 3030 or 3535 white LEDs module, single LED 5W
LEDs power: 200W
LEDs life: 50000-100000 hours
Color Temp.: 3200k or 5600k
CRI: ≥93，TLCI≥91
Luminous flux: 3200K/4940 lm、5600K/6600 lm
Beam angle: 10°
Control signal: DMX
DMX channel: 1 channel
Control model: DMX or manual button
Dimming: 16BIT above smooth flicker-free dimming, dimming not delay, frequency 20k above.
Zooming: manual knob zoom
Radiation fan ：custom made fan , its speed and noisy changeable intelligently
Ambient temperature：-25℃-40℃
IP rating：IP20
Inner size：82X30.5X33.5cm
Packing size：88X38.5X40cm
Net weight：11.3kg
Gross weight：13.6kg
Beam size and LUX data at different distances
| Distance（m） | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 | 30 | 35 | 40 | 45 | |
| Beam diameter（m） | 1.4 | 1.75 | 2.1 | 2.45 | 2.8 | 3.15 | 3.5 | 4.37 | 5.25 | 6.12 | 7.01 | 7.87 | |
|
P10B56（200W 5600K） | Centre(LUX） | 3910 | 2530 | 1760 | 1310 | 1010 | 810 | 670 | 480 | 340 | 265 | 198 | 160 |
| Average(LUX） | 2896 | 1874 | 1304 | 970 | 748 | 600 | 496 | 356 | 252 | 196 | 147 | 119 | |
|
P10B32（200W 3200K） | Centre(LUX） | 4220 | 2780 | 1985 | 1490 | 1150 | 940 | 760 | 520 | 380 | 290 | 225 | 175 |
| Average(LUX） | 3126 | 2059 | 1470 | 1104 | 852 | 696 | 563 | 385 | 281 | 215 | 167 | 130 | |
