HN-P10A(200W/PRIME/NORMAL)
Product model

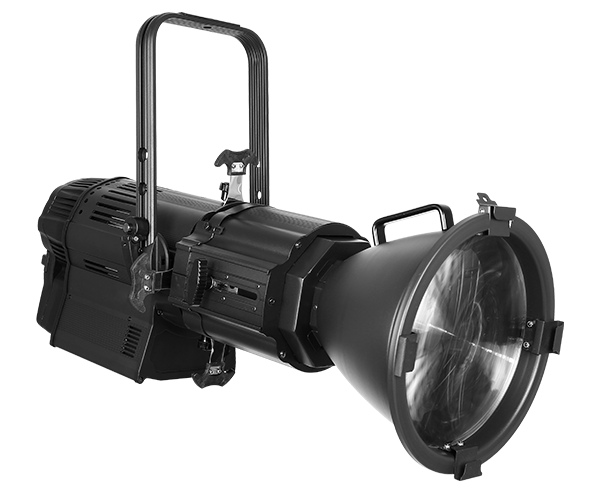

Product name : 300W LED 10° profile light
HN-P10A(200W/PRIME/NORMAL)
Item: P10A56（300W 5600K） P10A32（300W 3200K）
Technology data Voltage: AC100-240V/50-60Hz Power: 320W LEDs: 84pcs 3030 or 3535 white LEDs module, single LED 5W LEDs power: 300W LEDs life: 50000-100000 hours Color Temp.: 3200k or 5600k CRI: 93，TLCI91 Luminous flux: 3200K/6430 lm、560
Product name : 300W LED 10° profile light
HN-P10A(200W/PRIME/NORMAL)
Item: P10A56（300W 5600K） P10A32（300W 3200K）
Technology data
Voltage: AC100-240V/50-60Hz
Power: 320W
LEDs: 84pcs 3030 or 3535 white LEDs module, single LED 5W
LEDs power: 300W
LEDs life: 50000-100000 hours
Color Temp.: 3200k or 5600k
CRI: ≥93，TLCI≥91
Luminous flux: 3200K/6430 lm、5600K/8960 lm
Beam angle: 10°
Control signal: DMX
DMX channel: 1 channel
Control model: DMX or manual button
Dimming: 16BIT above smooth flicker-free dimming, dimming not delay, frequency 20k above.
Zooming: manual knob zoom
Radiation fan ：custom made fan , its speed and noisy changeable intelligently
Ambient temperature：-25℃-40℃
IP rating：IP20
Inner size：82X30.5X33.5cm
Packing size：88X38.5X40cm
Net weight：11.3kg
Gross weight：13.6kg
Beam size and LUX data at different distances
| Distance（m） | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 | 30 | 35 | 40 | 45 | |
| Beam diameter（m） | 1.4 | 1.75 | 2.1 | 2.45 | 2.8 | 3.15 | 3.5 | 4.37 | 5.25 | 6.12 | 7.01 | 7.87 | |
|
P10A56（300W 5600K） | Centre(LUX） | 4890 | 3160 | 2215 | 1640 | 1260 | 1015 | 840 | 610 | 425 | 330 | 250 | 210 |
| Average(LUX） | 3622 | 2341 | 1641 | 1215 | 933 | 752 | 622 | 452 | 315 | 244 | 185 | 156 | |
|
P10A32（300W 3200K） | Centre(LUX） | 5270 | 3475 | 2480 | 1862 | 1430 | 1180 | 950 | 650 | 480 | 365 | 280 | 220 |
| Average(LUX） | 3904 | 2574 | 1837 | 1379 | 1059 | 874 | 704 | 481 | 356 | 270 | 207 | 163 | |
