HN-P5B(200W/PRIME/NORMAL)
Product model

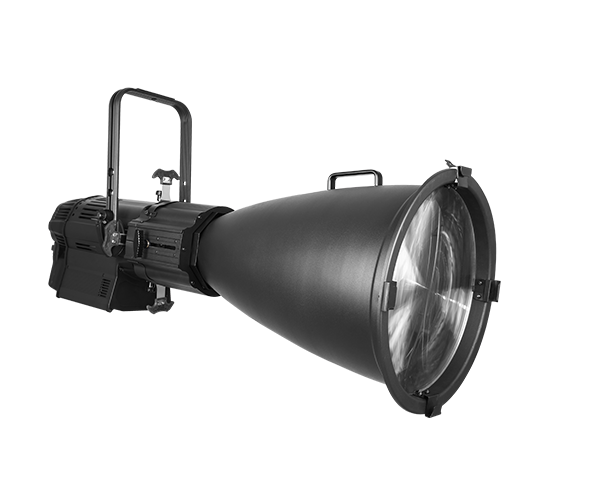

Product name : 200W LED 5° profile light
HN-P5B(200W/PRIME/NORMAL)
Item: P5B56（200W 5600K） P5B32（200W 3200K）
Technology data: Voltage: AC100-240V/50-60Hz Power: 220W LEDs: 56 pcs 3030 or 3535 white LEDs module, single LED 5W LEDs power: 200W LEDs life: 50000-100000 hours Color Temp.: 3200k or 5600k CRI: 93，TLCI91 Luminous flux: 3200K/4940 lm、5
Product name : 200W LED 5° profile light
HN-P5B(200W/PRIME/NORMAL)
Item: P5B56（200W 5600K） P5B32（200W 3200K）
Technology data:
Voltage: AC100-240V/50-60Hz
Power: 220W
LEDs: 56 pcs 3030 or 3535 white LEDs module, single LED 5W
LEDs power: 200W
LEDs life: 50000-100000 hours
Color Temp.: 3200k or 5600k
CRI: ≥93，TLCI≥91
Luminous flux: 3200K/4940 lm、5600K/6600 lm
Beam angle: 5°
Control signal: DMX
DMX channel: 1 channel
Control model: DMX or manual button
Dimming: 16BIT above smooth flicker-free dimming, dimming not delay, frequency 20k above.
Zooming: manual knob zoom
Radiation fan ：custom made fan , its speed and noisy changeable intelligently
Ambient temperature：-25℃-40℃
IP rating：IP20
Inner size：110X41X42cm
Packing size: 118.5X49.5X49.5cm
Net weight：12kg
Gross weight：16.2kg
Beam size and LUX data at different distances
| Distance（m） | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 | 30 | 35 | 40 | 45 | |
| Beam diameter（m） | 0.7 | 0.87 | 1.05 | 1.22 | 1.4 | 1.57 | 1.75 | 2.18 | 2.62 | 3.06 | 3.49 | 3.93 | |
|
P5B56（200W 5600K） | Centre(LUX） | 12980 | 9570 | 6790 | 5120 | 4050 | 3270 | 2680 | 1732 | 1270 | 960 | 715 | 570 |
| Average(LUX） | 9615 | 7089 | 5030 | 3793 | 3000 | 2422 | 1985 | 1283 | 941 | 711 | 530 | 422 | |
|
P5B32（200W 3200K） | Centre(LUX） | 10950 | 7590 | 5810 | 4370 | 3580 | 2890 | 2350 | 1540 | 1120 | 850 | 635 | 505 |
| Average(LUX） | 8111 | 5622 | 4304 | 3237 | 2652 | 2141 | 1741 | 1141 | 830 | 630 | 470 | 374 | |
