HN-P10(RGBW/Prime)
Product model

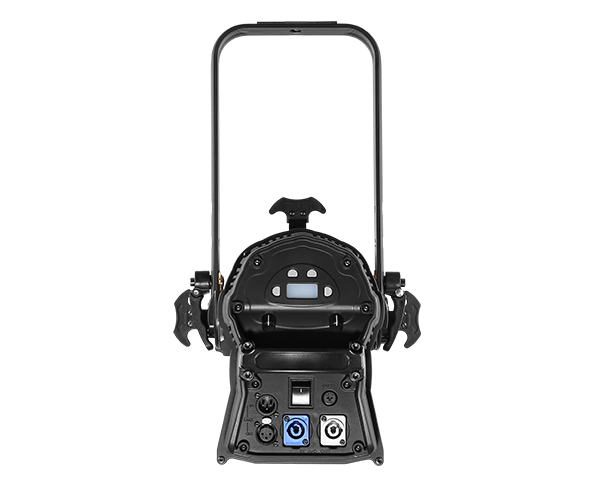

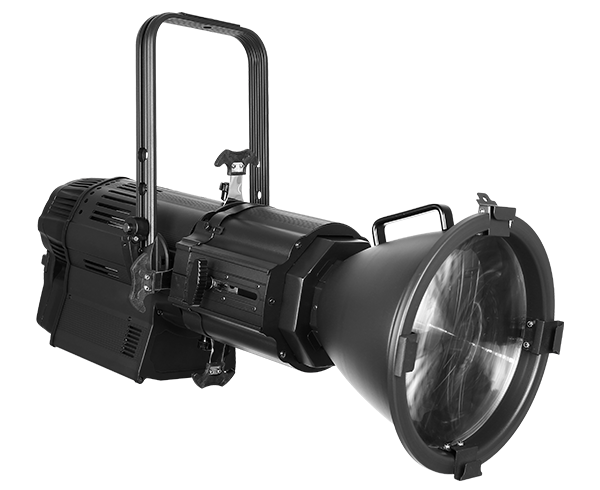

Product name : RGBW LED 10° profile light
HN-P10(RGBW/PRIME)
Item: P10
Technology data: Voltage: AC100-240V/50-60Hz Power: 220W LEDs: 24pcs 5050 RGBW LEDs module, red single power 3W , green 3W, blue 3W, warm white 8W LEDs power: 2700-10000K（190-220WW），single red（55W）、single green（90W）、single
Product name : RGBW LED 10° profile light
HN-P10(RGBW/PRIME)
Item: P10
Technology data:
Voltage: AC100-240V/50-60Hz
Power: 220W
LEDs: 24pcs 5050 RGBW LEDs module, red single power 3W , green 3W, blue 3W, warm white 8W
LEDs power: 2700-10000K（190-220WW），single red（55W）、single green（90W）、single bule（90W）
LEDs life: 50000-100000 hours
Color Temp.: 2700-10000K tunable （2700K±50, 3200K±100, 5600K±150）
CRI: ≥93，TLCI≥91 (average value)
Color : RGBW and mix all kinds of colors .
Luminous flux: 2700K/2960 lm、 3200K/2980 lm、5600K/3050 lm、10000k/2920 lm、
single red/320 lm、single green/670 lm、, single bule/190 lm
Beam angle: 10°
Control signal: DMX
DMX channel: 2 channels and 7 channels models option
Control model: DMX or manual button
Dimming: 16BIT above smooth flicker-free dimming, dimming not delay, frequency 20k above.
Zooming: manual knob zoom
Radiation fan ：custom made fan , its speed and noisy changeable intelligently , Dim 0-99 fan not move
Color difference for power change: ±3%
Color difference for temperature change: ±3%
Ambient temperature：-25℃-40℃
IP rating：IP20
Inner size：86.5X30.5X33.5cm
Packing size：93X38.5X40cm
Net weight：12.5kg
Gross weight：15. 5kg
Beam size and LUX data at different distances
| Distance（m） | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 | 30 | 35 | 40 | 45 | |
| Beam diameter（m） | 1.4 | 1.75 | 2.1 | 2.45 | 2.8 | 3.15 | 3.5 | 4.37 | 5.25 | 6.12 | 7.01 | 7.87 | |
| 2700K | centre(LUX） | 1220 | 813 | 580 | 433 | 335 | 268 | 218 | 146 | 104 | 80 | 58 | 47 |
| average(LUX） | 1061 | 707 | 504 | 377 | 291 | 233 | 190 | 127 | 90 | 70 | 50 | 41 | |
| 3200K | centre(LUX） | 1240 | 826 | 590 | 440 | 340 | 272 | 220 | 148 | 108 | 82 | 60 | 49 |
| average(LUX） | 1078 | 718 | 513 | 383 | 296 | 237 | 191 | 129 | 94 | 71 | 52 | 43 | |
| 5600K | centre(LUX） | 1235 | 825 | 590 | 439 | 340 | 270 | 225 | 148 | 106 | 80 | 62 | 50 |
| average(LUX） | 1074 | 717 | 513 | 382 | 296 | 235 | 196 | 129 | 92 | 70 | 54 | 43 | |
| Single red | centre(LUX） | 238 | 160 | 113 | 85 | 65 | 52 | 43 | 30 | 20 | 15 | 12 | 9 |
| average(LUX） | 207 | 139 | 98 | 74 | 57 | 45 | 37 | 26 | 17 | 13 | 10 | 8 | |
| Single green | centre(LUX） | 495 | 330 | 236 | 176 | 135 | 108 | 89 | 59 | 42 | 32 | 24 | 19 |
| average(LUX） | 430 | 287 | 205 | 153 | 117 | 94 | 77 | 51 | 37 | 28 | 21 | 17 | |
| single bule | centre(LUX） | 162 | 108 | 77 | 58 | 44 | 36 | 30 | 20 | 14 | 11 | 8 | 6 |
| average(LUX） | 141 | 94 | 67 | 50 | 38 | 31 | 26 | 17 | 12 | 10 | 7 | 5 | |
